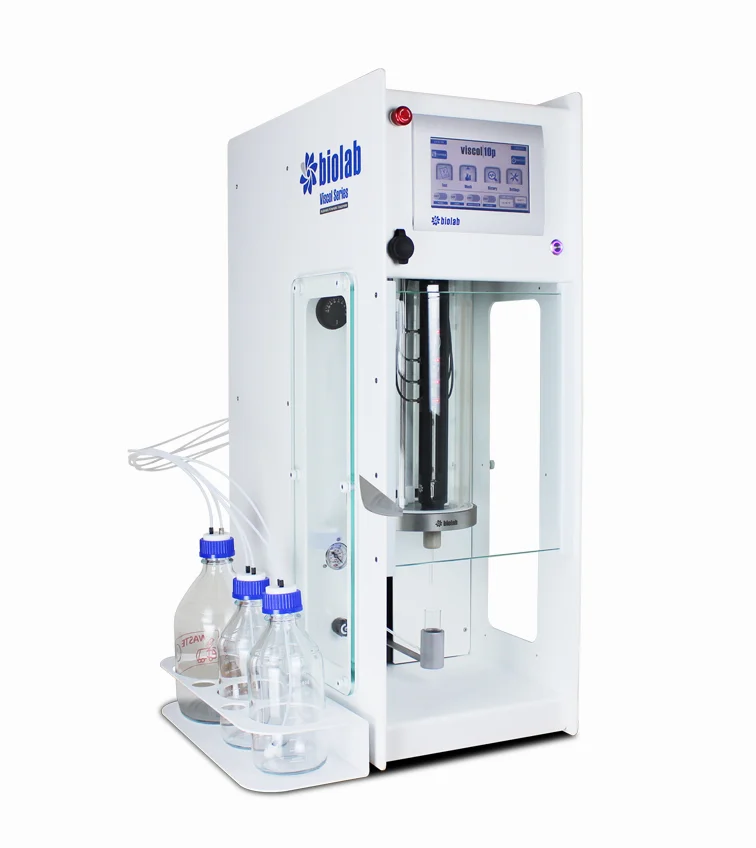

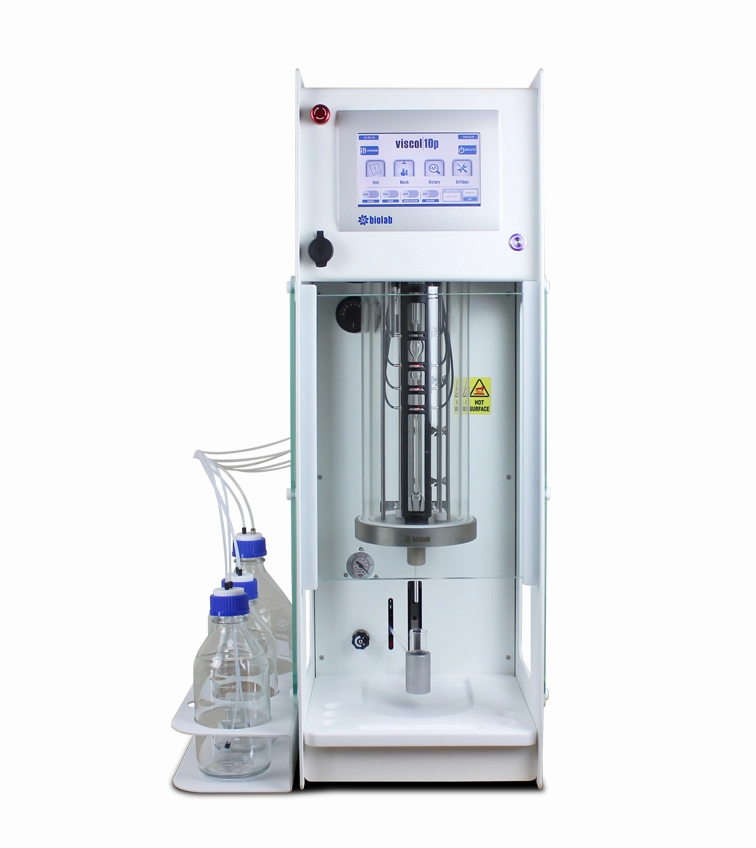

Viscol 10P is a fully automated single-bath polymer viscometer for relative, specific, reduced, inherent, intrinsic viscosity measurements. The unit is designed with acid resistive teflon and glass components to suit analysis with high acidic solvents for different types of polymer and plastic samples.
Spesifications :
Methodology ASTM D789, ASTM D871,
ASTM D1243, ASTM D1795,
ASTM D2857, ASTM D4243,
ASTM D4603, ISO 307, ISO 1628,
ISO 5351, IEC 60450, TAPPI 230
Viscometer type Ubbelohde
Viscometer range 170 – 225 Fold
Temperature range 10°C to 140°C
Temperature sensitivity 0.001°C
Temperature stability 0.005°C
Time detection precision 0.001 s
Measurement range 0.15 cSt – 30000 cSt
Sample volume 10-15 mL
Cleaning Dual solvent
Display 7” Touch Panel Screen
Data transfer USB & Ethernet (RJ45)
Cooling Built-in cooling coil
Security Low Bath Oil & Over Temperature Safety Interlocks
Weight 40 Kg
Dimensions 30 x 50 x 80 cm
Power requirement 220 VAC – 50 Hz
