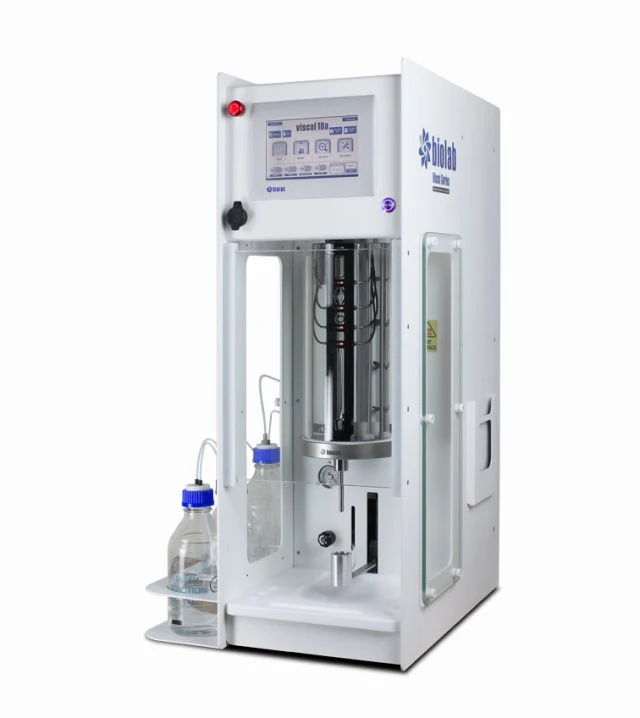

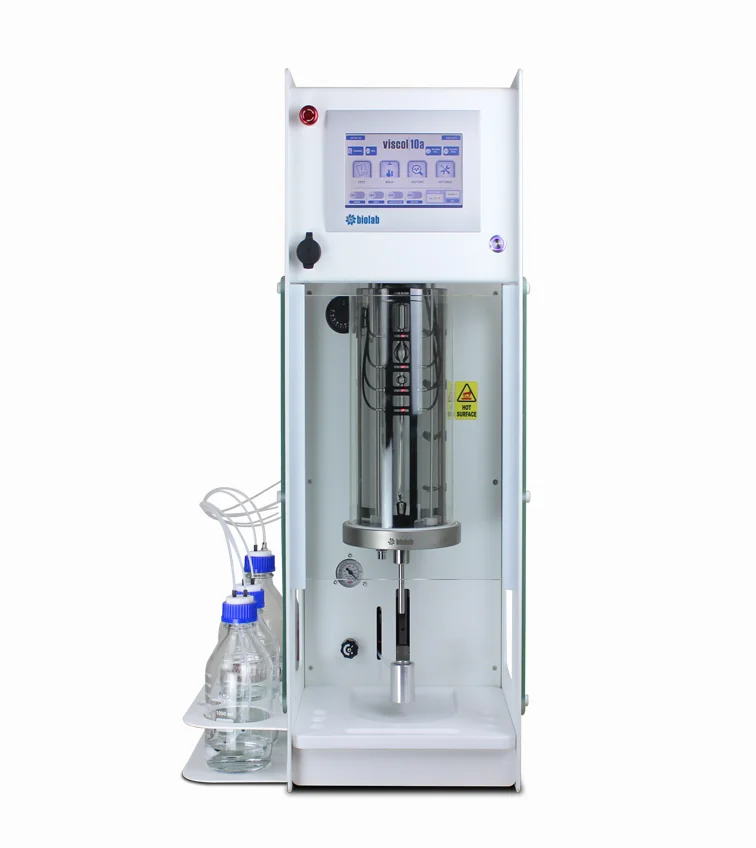

Viscol 10A is a fully automated single-bath kinematic viscometer according to ASTM D445/D446 and related standards. The unit is
designed for kinematic viscosity measurements of all newtonian type fluids up to 120°C.
Spesfications :
Methodology ASTM D445, ASTM D446,
ISO 3104, ISO 3105, IP 71
Viscometer type Ubbelohde
Viscometer range 170 – 225 Fold
Temperature range 10°C to 120°C * Other temperatures (optional)
Temperature sensitivity 0.001°C
Temperature stability 0.005°C
Time detection precision 0.001 s
Measurement range 0.15 cSt – 30000 cSt
Sample volume 10-15 mL
Cleaning Dual solvent
Display 7” Touch Panel Screen
Data transfer USB & Ethernet (RJ45)
Cooling Built-in cooling coil
Security Low Bath Oil & Over Temperature Safety Interlocks
Weight 40 Kg
Dimensions 30 x 50 x 80 cm
Power requirement 220 VAC – 50 Hz
