The RTCU MX2 warp is targeting a broad range of advanced telemetry / telematics applications and has been designed according to the highest technical standards for professional automotive and industrial use.
Based on the RTCU M2M Platform.
NX32 execution architecture.
• RTCU IDE development tool with full featured device simulator.
• Huge standard API with more than 1000+ functions.
• Comprehensive protocol support, including: TCP-UDP/IP, FTP, SMTP, RACP, MQTT, MODBUS, FMS/J1939, NMP/Garmin FMI.
• Fully backward compatibility with existing X32 applications.
World-wide Quad-band GSM cellular engine.
External SIM-card reader with optional internal reader.
Digitized audio can be played over cellular / to external device.
DTMF support for the implementation of Interactive Voice Response applications.
Multi-GNSS positioning engine with GPS, GLONASS and optional GALILEO.
High-performance 3-axis accelerometer with 16g scale.
Huge data-flash/logger memory with a capacity of 8.5 MB.
Internal 8 MB FAT32 flash drive.
Standard FAT32 SD-CARD reader with up to 32 GB capacity.
Up-to 2 x RS232 channels and an optional RS485 channel.
2 x analog inputs with 0..10 volt / 12 bit precision.
5 x digital inputs and 4 high-power solid-state digital outputs.
Optional Full CAN 2.0B controller with hardware filtering and multi-speed support.
1-Wire bus for accessories such as ID-button reader, temperature sensors, etc.
Powerful on-demand hardware options:
CAN: CAN 2.0B port.
COM: RS485/MODBUS and 1xRS232 port with control signals.
ISIM: Internal SIM-card reader.
HS: Headset support.
On-demand options can be applied anytime – even remotely after installation.
Wide operating range from 8..36 VDC.
On-board high-capacity Li-Ion battery.
Advanced power-management with wake-up on a wide range of events.
Hands-free interface with microphone and Class-D audio speaker amplifier.
Fully supports the Professional Navigation and Messaging device PNM-220.
Support the Garmin Fleet Management Interface.

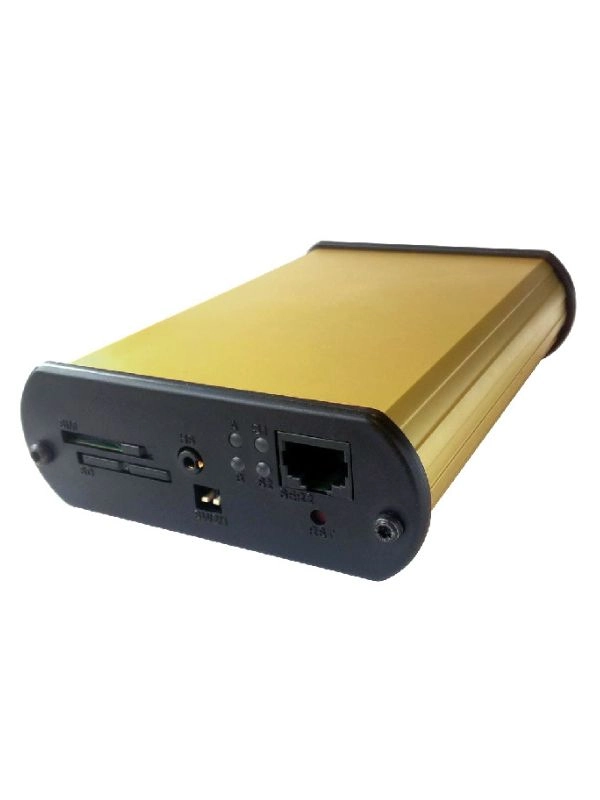

Exclusive and durable GOLD aluminum encapsulation.
