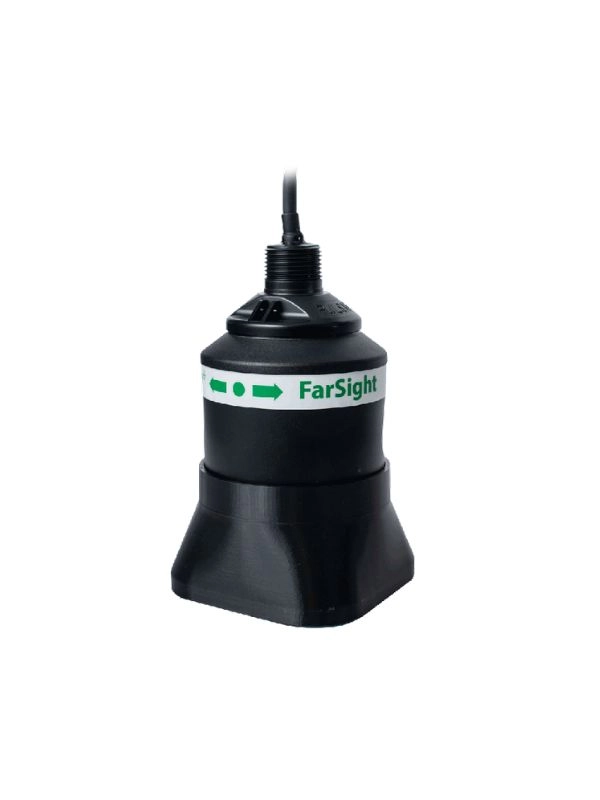

Farsight Radar Transducers adalah solusi sensor pemantauan tingkat lanjut berbasis teknologi radar (gelombang mikro) yang dirancang untuk mengukur level cairan, lumpur, maupun material padat (bulk solids) secara kontinyu dengan tingkat akurasi tinggi. Beroperasi dengan metode tanpa kontak (non-contact measurement), sensor ini menjadi pilihan utama untuk pemantauan level pada sungai, waduk, tangki penyimpanan kimia, hingga saluran pembuangan limbah industri.
Providing the highest confidence in challenging velocity measurement applications while maintaining maximum performance. With excellent low-velocity capabilities, support for longer distances from sensor to target, built-in tilt compensation, and automatic rainfall interference discriminations. FarSight is the right choice for applications in water and wastewater, environmental, as well as industrial. Tried and tested robustness is built in as standard.
GENERAL
Measurement Type: Non-contact velocity
PHYSICAL
Dimensions: Nominal 195 mm H x 145 mm D (7.7 in x 5.7 in)
Weight: Nominal 1.2 kg (2.6 lbs)
Frequency: 24 GHz
Sensor Body Material: PVDF main body, Valox 357 on cap and submersion shield
Mounting Connection: Rear: 1-inch BSP or NPT thread with BReezTM adapter. Optional mounting bracket available.
Cable: 5-core screened
Cable Lengths: Standard: 10 m, 20 m, or 30 m (32.8 ft, 65.6 ft, or 98.4 ft)
Optional: 50 m or 100 m (164 ft or 328 ft)
Maximum Separation: Up to 500 m (1,640 ft) from FarSight to controller or RTU/logger
PERFORMANCE
Operational Range: Up to vertical height of 15 m (49 ft)
Technology: K-Band (ISM) Radar
Beam Angle: 10° inclusive
Velocity Range: ±0.2 m/s to ±6 m/s (±0.66 ft/s to ±19.7 ft/s) in most applications. Performance may vary depending on application. Ideal surface condition would include visually observable ripples.
Accuracy: The greater of ±1.5% or 0.05 m/s (0.16 ft/s)
Max. Width of Measurement Area Per Sensor: Up to 3 m (9.8 ft)
Optimal Installation Angle: 30° to 50° (from horizontal) with built-in electronic tilt compensation
ENVIRONMENTAL
Enclosure Protection: IP68 / NEMA 6P
Vibration Protection: Fully Potted
Ambient Operating
Temperature: -40°C to +80°C (-40°F to +176°F)
Humidity: 0 to 99% (non-condensing)
Process Connection
Temperature: -40°C to +80°C (-40°F to +176°F)
